75 inch Double Sided

Outdoor Digital Media, produced by Minorport with "Explore Out Of Home" series, are products that are aesthetic, resistant to environmental conditions and harmonious with urban texture. Outdoor Digital Media provides a high level of message frequency with a 75-inch single and double-sided display alternatives vertically.

SPECIFICATIONS

Model

exooh-75 Outdoor Double-Sided

Screen Size

75"

Brand

Samsung

Resolution

1080x1920

Panel Technology

120 Hz E-LED BLU

Brightness (cd/m2)

2500 (cd/m2)

Contrast

5,000:1

Response Time

6ms

Active Screen Area

922x1642mm

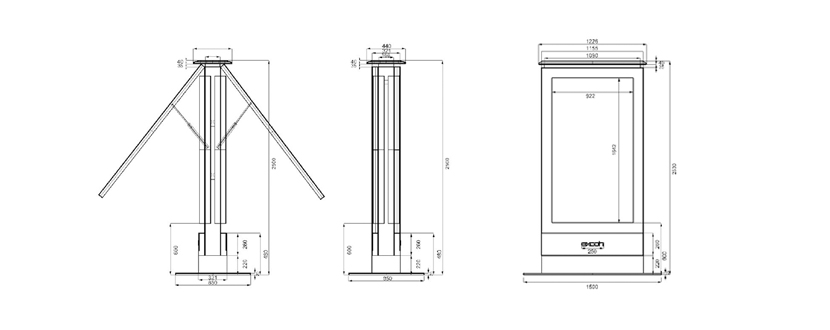

Dimensions

1226x2500x440mm

Protection Glass

4+4 mm Tempered, Extra clear

Exterior Cabin Material

DKP Metal Sheet/Aluminium/Galvanized

Cooling System

Industrial Air Conditioning

Operating Temperature

0℃~ 30℃ (Direct Sunlight)

0℃~ 50℃ (w/o Direct Sunlight)

Media Processor

Cortex-A9 1GHz Quad Core CPU

Memory Unit

8GB (2GB Occupied by O/S, 6GB Available)

Wi-Fi

Included

3G Modem

Optional

Camera

Optional

Remote Content Management Software

Optional

Warranty Period

3 YEARS

Locking System

Central

Logo

Yes

Anchoring

Yes

Loudspeaker

Built in Speaker (10W + 10W) (Internal Loudspeaker)

Double-Sided

Yes

Visible Printout Area

x

Printing Illumination Type

x

Casing Type

Portrait

Features

- Front and rear service provider lids will be opened by using 2 pieces of 600N pistons.
- All fasteners are hidden screws and they shall be protected against external interventions.
- The fixing anchor holes are in the interior part of the casing and safety principle is taken into consideration. Can be anchored on 8 different points.
- The roof located in the upper part of the product is designed to reduce the exposure of the upper part to dense water or dust thanks to radius fringes.
